Products

8 821 055 259

Superlight Nano 4

Housing colour

black

silver grey

white

Color temperature

4000 K

3000 K

Specification

Colour: silver grey
Fixation: with mounting bracket
Light distribution: wide beam

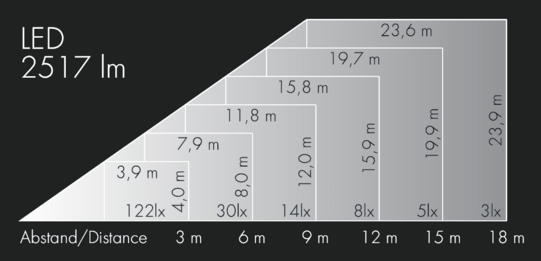

Beam angle (FWHM): 66°
Light source: LED 4000 K
Luminous flux: 2517 lm
Power: 39 W
Efficiency: 64 lm/W
Control: 1-10V
Color Rendering Index cri: CRI > 80 > 80
Colour tolerance: max 2 SDCM
Service life: L: 90, B:10

Download

128 0 700 950 | silver grey

Wall arm Telescopic wall arm, 300 - 480 mm, aluminum, polyester powder coated

128 0 730 950 | silver grey

Wall arm telescopic 440 - 610 mm, aluminum, polyester powder coated

128 0 760 950 | silver grey

pole mount adapter aluminum, polyester powder coated, stainless steel strap, for mounting on poles Ø 60 – 120 mm

129 0 502 950 | silver grey

Earth spike stainless steel, for use in landscaped areas

120 0 623 940

Expandable tree strap with mounting plate made of polyester fiber for trunk circumference max. 140 cm (different lengths available upon request), with polyester powder coated mounting plate, polyester powder coated

128 0 814 950 | silver grey

Cowl stainless steel, to avaoid glare from 3 directions, for mounting on front of floodlight

128 0 815 950 | silver grey

Barn doors aluminum, to avoid glare from 4 directions, for retro-fitting

128 0 816 950 | silver grey

Carrier frame with honeycomb louvre with safety glass, to avoid glare

128 0 816 951 | silver grey

Carrier frame with safety glass, for colour filters, lenses and plasticfilm

238 1 207 | black

Honeycomb louvre internal (factory fitted, not for retro-fitting) to reduce glare

Superlight Nano are extremely compact LED floodlights. The efficient optics create narrow beam, elliptical or wide beam light distributions. The minimalist design allows the floodlights to be integrated into various different architectural environments. With integral control gear they can be connected to mains voltage. Superlight Nano are the smallest and most discreet exterior floodlights on the market. The new powerful Superlight Nano 5 is an ideal lighting tool for façade lighting on tall buildings and for accent lighting from long distances.
