8 818 045 139

Superlight Nano 2

Specification

Colour: black
Fixation: with mounting bracket
Light distribution: linear horizontal

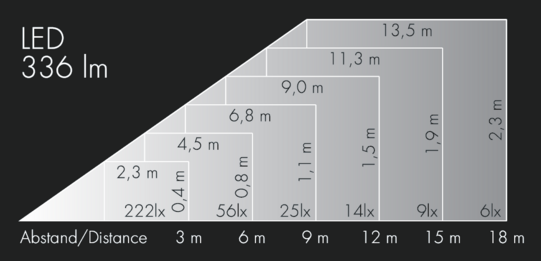

Beam angle (FWHM): 7° / 41°
Light source: LED 4000 K
Luminous flux: 336 lm
Power: 4 W
Efficiency: 84 lm/W
Control: DALI
Color Rendering Index cri: CRI > 80 > 80
Colour tolerance: max 2 SDCM
Service life: L: 90, B:10

Download

128 0 738 940 | black

220 mm wall arm aluminum, polyester powder coated

128 0 739 940 | black

450 mm wall arm aluminum, polyester powder coated

128 0 760 940 | black

pole mount adapter aluminum, polyester powder coated, stainless steel strap, for mounting on poles Ø 60 – 120 mm

129 0 502 940 | black

Earth spike stainless steel, for use in landscaped areas

120 0 621 940

Expandable tree strap with mounting plate aus Polyesterfaserstoff mit Zuwachsreserve für maximalen Stammumfang von 140 cm (abweichende Längen auf Anfrage lieferbar) und Montageplatte aus Aluminium, polyester powder coated

128 0 762 940 | black

Barn doors aluminum, to avoid glare from 4 directions, for retro-fitting

128 0 752 941 | black

Carrier frame with safety glass, for colour filters, lenses and plasticfilm

238 1 205 | black

Honeycomb louvre internal (factory fitted, not for retro-fitting) to reduce glare

128 0 664 940 | black

Cowl stainless steel, to avaoid glare from 3 directions, for mounting on front of floodlight

Superlight Nano are extremely compact LED floodlights. The efficient optics create narrow beam, elliptical or wide beam light distributions. The minimalist design allows the floodlights to be integrated into various different architectural environments. With integral control gear they can be connected to mains voltage. Superlight Nano are the smallest and most discreet exterior floodlights on the market. The new powerful Superlight Nano 5 is an ideal lighting tool for façade lighting on tall buildings and for accent lighting from long distances.
