8 400 016 099
Nanodot
Specification
- Colour
- stainless steel (V4A)
- Fixation
- for flush mounting

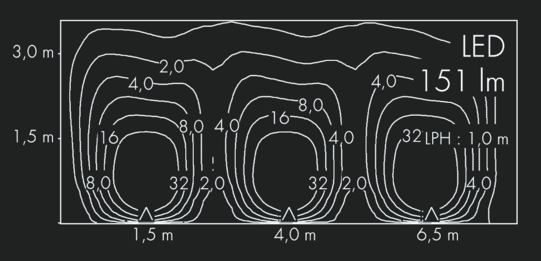

- Light distribution
- asymmetrical beam
- Light source
- LED 3000 K
- Luminous flux
- 151 lm
- Power
- 1.5 W
- Efficiency
- 108 lm/W
- Control
- on / off
- Color Rendering Index cri
- 80 80
- Colour tolerance
- max 2 SDCM
- Service life
- L: 90, B:10
Download
Add accessories to your data sheet with a click.
230 2 606
Screwdriver with allen ball head 2.5 mm, tool for luminaire installation
114 0 042
Control gear unit grey, weather-resistant polycarbonate, IP67, IK08, integral constant current driver (AC/DC) preset to 500 mA, 2 x M20 cable glands for cable diameter 5 -14 mm, for 2 - 9 luminaires max. 14 W (for 9 luminaires max. distance 115 m), Indication for cable 0,75 mm²
114 0 042 100
Control gear unit grey, weather-resistant polycarbonate, IP67, IK08, integral constant current driver (AC/DC) preset to 500 mA, 2 x M20 cable glands for cable diameter 5 -14 mm, for 2 - 7 luminaires dimmable DALI max. 11 W (for 7 luminaires max. distance 170 m), Indication for cable 0,75 mm²
114 0 052 100
Control gear unit grey, weather-resistant polycarbonate, IP67, IK08, integral constant current driver (AC/DC) preset to 500 mA, 2 x M20 cable glands for cable diameter 5 -14 mm, for 6 - 20 luminaires dimmable DALI max. 36 W (for 20 luminaires max. distance 150 m), Indication for cable 0,75 mm²
