  • Nanodot Handrail luminaires

  • Nanodot Handrail luminaires

    ×


    8 400 016 089

    Nanodot


    Colour temperature

    4000 K
    3000 K
    2700 K

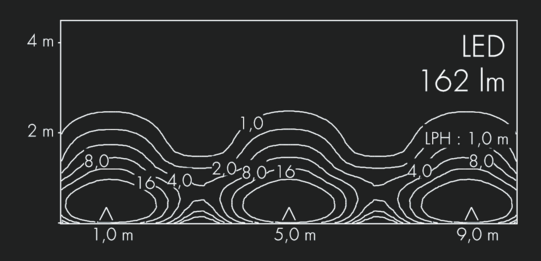

    Light distribution


    Remote control gear unit essentially required, see data sheet with accessories
    Specification
    Colour
    stainless steel (V4A)
    Fixation
    for flush mounting
    Light distribution
    lateral wide beam
    Beam angle (FWHM)
    30° / 105°
    Light source
    LED 3000 K
    Luminous flux
    162 lm
    Power
    1.5 W
    Efficiency
    114 lm/W
    Control
    on / off / DALI
    Color Rendering Index cri
    CRI > 80 > 80
    Colour tolerance
    max 2 SDCM
    Service life
    L: 90, B:10
    Download

    Add accessories to your data sheet with a click.

    114 0 042

    Control gear unit grey, weather-resistant polycarbonate, IP67, IK08, integral constant current driver (AC/DC) preset to 500 mA, 2 x M20 cable glands for cable diameter 5 -14 mm, for 2 - 9 luminaires max. 14 W (for 9 luminaires max. distance 115 m), Indication for cable 0,75 mm²

    114 0 042 100

    Control gear unit grey, weather-resistant polycarbonate, IP67, IK08, integral constant current driver (AC/DC) preset to 500 mA, 2 x M20 cable glands for cable diameter 5 -14 mm, for 2 - 7 luminaires dimmable DALI max. 11 W (for 7 luminaires max. distance 170 m), Indication for cable 0,75 mm²

    114 0 052 100

    Control gear unit grey, weather-resistant polycarbonate, IP67, IK08, integral constant current driver (AC/DC) preset to 500 mA, 2 x M20 cable glands for cable diameter 5 -14 mm, for 6 - 20 luminaires dimmable DALI max. 36 W (for 20 luminaires max. distance 150 m), Indication for cable 0,75 mm²

    230 2 606

    Screwdriver with allen ball head 2.5 mm, tool for luminaire installation
    Download data sheet

    Nanodot are miniature luminaires for flush installation into round handrails made of metal. Discreet and completely glare-free, these luminaires achieve uniform illumination on paths and stairs. Precise optics create asymmetrical or wide beam light distributions and make large luminaire spacings possible. The luminaires can be retro-fitted into existing handrails on site.

    Preselection
    Typ
    Light source
    Light distribution
    Colour temperature
    Control

    27 Products
    •   Part number Description Colour Light distribution Light source Luminous flux Power
    • 8 400 015 0698 400 015 069Nanodotstainless steel (V4A)bilateral asymmetrical beam 111° / 75°LED 4000 K145 lm1.5 Won / off / DALI
    • 8 400 015 0898 400 015 089Nanodotstainless steel (V4A)lateral wide beam 30° / 105°LED 4000 K171 lm1.5 Won / off / DALI
    • 8 400 015 0998 400 015 099Nanodotstainless steel (V4A)asymmetrical beam 43°LED 4000 K160 lm1.5 Won / off / DALI
    • 8 400 016 0698 400 016 069Nanodotstainless steel (V4A)bilateral asymmetrical beam 111° / 75°LED 3000 K137 lm1.5 Won / off / DALI
    • 8 400 016 0898 400 016 089Nanodotstainless steel (V4A)lateral wide beam 30° / 105°LED 3000 K162 lm1.5 Won / off / DALI
    • 8 400 016 0998 400 016 099Nanodotstainless steel (V4A)asymmetrical beam 43°LED 3000 K151 lm1.5 Won / off / DALI
    • 8 400 017 0698 400 017 069Nanodotstainless steel (V4A)bilateral asymmetrical beam 111° / 75°LED 2700 K121 lm1.5 Won / off / DALI
    • 8 400 017 0898 400 017 089Nanodotstainless steel (V4A)lateral wide beam 30° / 105°LED 2700 K144 lm1.5 Won / off / DALI
    • 8 400 017 0998 400 017 099Nanodotstainless steel (V4A)asymmetrical beam 43°LED 2700 K135 lm1.5 Won / off / DALI
    • 8 400 115 0698 400 115 069Nanodot (Notlicht nach 60598-2-22)stainless steel (V4A)bilateral asymmetrical beam 111° / 75°LED 4000 K145 lm1.5 Won / off / DALI
    • 8 400 115 0898 400 115 089Nanodot (Notlicht nach 60598-2-22)stainless steel (V4A)lateral wide beam 30° / 105°LED 4000 K171 lm1.5 Won / off / DALI
    • 8 400 115 0998 400 115 099Nanodot (Notlicht nach 60598-2-22)stainless steel (V4A)asymmetrical beam 43°LED 4000 K160 lm1.5 Won / off / DALI
    • 8 400 116 0698 400 116 069Nanodot (Notlicht nach 60598-2-22)stainless steel (V4A)bilateral asymmetrical beam 111° / 75°LED 3000 K137 lm1.5 Won / off / DALI
    • 8 400 116 0898 400 116 089Nanodot (Notlicht nach 60598-2-22)stainless steel (V4A)lateral wide beam 30° / 105°LED 3000 K162 lm1.5 Won / off / DALI
    • 8 400 116 0998 400 116 099Nanodot (Notlicht nach 60598-2-22)stainless steel (V4A)asymmetrical beam 43°LED 3000 K151 lm1.5 Won / off / DALI
    • 8 400 117 0698 400 117 069Nanodot (Notlicht nach 60598-2-22)stainless steel (V4A)bilateral asymmetrical beam 111° / 75°LED 2700 K121 lm1.5 Won / off / DALI
    • 8 400 117 0898 400 117 089Nanodot (Notlicht nach 60598-2-22)stainless steel (V4A)lateral wide beam 30° / 105°LED 2700 K144 lm1.5 Won / off / DALI
    • 8 400 117 0998 400 117 099Nanodot (Notlicht nach 60598-2-22)stainless steel (V4A)asymmetrical beam 43°LED 2700 K135 lm1.5 Won / off / DALI
    • 8 401 015 0698 401 015 069Nanodot (square handrail)stainless steel (V4A)bilateral asymmetrical beam 111° / 75°LED 4000 K145 lm1.5 Won / off / DALI
    • 8 401 015 0898 401 015 089Nanodot (square handrail)stainless steel (V4A)lateral wide beam 30° / 105°LED 4000 K171 lm1.5 Won / off / DALI
    • 8 401 015 0998 401 015 099Nanodot (square handrail)stainless steel (V4A)asymmetrical beam 43°LED 4000 K160 lm1.5 Won / off / DALI
    • 8 401 016 0698 401 016 069Nanodot (square handrail)stainless steel (V4A)bilateral asymmetrical beam 111° / 75°LED 3000 K137 lm1.5 Won / off / DALI
    • 8 401 016 0898 401 016 089Nanodot (square handrail)stainless steel (V4A)lateral wide beam 30° / 105°LED 3000 K162 lm1.5 Won / off / DALI
    • 8 401 016 0998 401 016 099Nanodot (square handrail)stainless steel (V4A)asymmetrical beam 43°LED 3000 K151 lm1.5 Won / off / DALI
    • 8 401 017 0698 401 017 069Nanodot (square handrail)stainless steel (V4A)bilateral asymmetrical beam 111° / 75°LED 2700 K121 lm1.5 Won / off / DALI
    • 8 401 017 0898 401 017 089Nanodot (square handrail)stainless steel (V4A)lateral wide beam 30° / 105°LED 2700 K144 lm1.5 Won / off / DALI
    • 8 401 017 0998 401 017 099Nanodot (square handrail)stainless steel (V4A)asymmetrical beam 43°LED 2700 K135 lm1.5 Won / off / DALI
