Products

8 655 115 059

Fixation

with overlapping trim

for flush mounting

Colour temperature

4000 K

3000 K

Light distribution

Control

on / off

DALI

Options

with slip resistant glass, surface with square pattern print

Specification

Colour: black
Fixation: with overlapping trim

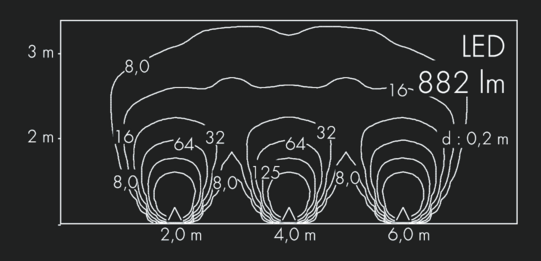

Light distribution: wide beam, adjustable
Beam angle (FWHM): 55°
Light source: LED 4000 K
Luminous flux: 882 lm
Power: 11 W
Efficiency: 80 lm/W
Control: on / off
Color Rendering Index cri: CRI > 80 > 80
Colour tolerance: max 3 SDCM
Service life: L: 90, B:10

Download

126 0 371

polypropylene recess housing with overlapping trim

226 0 161

Cast resin connection box for direct connection to luminaire and for through wiring of 2 buried cables, for luminaires with installation sleeve and cable.

126 0 372 940 | black

Radial louvre with frame, to reduce lateral glare

126 0 340 | -

Ribbed glass spreader lense internally fitted, for linear beam control, continuously adjustable through 360°

The in-ground uplighter range is designed to fulfill the demands of sophisticated lighting projects. The luminaires combine all crucial product advantages: precise light distributions, perfect glare control, adjustable reflectors and shallow recess depth. Uplight 220 and 260 are equipped with the innovative Heat Slide mechanism which allows the optical system to be adjusted and aimed whilst the LED module remains connected to the luminaire housing. Thus efficient heat dissipation and a long lifetime of the LED is achieved.

The luminaires are now available with innovative wall washer optics for uniform illuminaition from the bottom to the top of the façade.
