8 894 061 009

Wall mount luminaire

Housing colour

silver grey
black
white
Specification
Colour
white
Fixation
with joint
Light distribution
wide beam

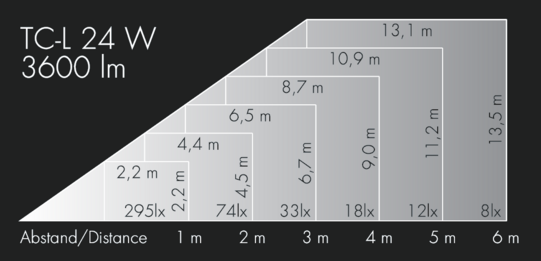

Beam angle (FWHM)
96° / 95°
Light source
TC-L
Luminous flux
3600 lm
Power
60 W
Efficiency
60 lm/W
Control
on / off
Download
Add accessories to your data sheet with a click.

128 0 086 960 | white

Corner fixing bracket B aluminum, polyester powder coated, to mount luminaires on 90° corners

128 0 232 960 | white

Wall plate B aluminum, polyester powder coated, for additional support on unstable surfaces

128 0 199 960 | white

singe pole mount adapter aluminum, polyester powder coated, for 76 mm Ø pole, for one luminaire

128 0 200 960 | white

double pole mount adapter aluminum, polyester powder coated, for 76 mm Ø pole, for two luminaires

128 0 073 960 | white

Pole top fitter, for 3 luminaires aluminum, polyester powder coated, for pole top Ø 76 mm, for three luminaires
Download data sheet

Pole top/wall mount luminaires are used for symmetrical and uniform area lighting. They can be mounted either on a pole or wall and are characterized by their very slim profile. These luminaires are available for compact fluorescent, high pressure sodium lamps and high pressure mercury lamps.

Preselection
Typ
Light source
Colour
Light distribution
Control

6 Products
  •   Part number Description Colour Light distribution Light source Luminous flux Power
  • 8 894 051 0098 894 051 009 Wall mount luminairesilver greywide beam 96° / 95°TC-L 3600 lm60 Won / off
  • 8 894 056 0098 894 056 009 Wall mount luminairesilver greywide beam 96° / 95°TC-L 24 Won / off
  • 8 894 041 0098 894 041 009 Wall mount luminaireblackwide beam 96° / 95°TC-L 3600 lm60 Won / off
  • 8 894 046 0098 894 046 009 Wall mount luminaireblackwide beam 96° / 95°TC-L 24 Won / off
  • 8 894 061 0098 894 061 009 Wall mount luminairewhitewide beam 96° / 95°TC-L 3600 lm60 Won / off
  • 8 894 066 0098 894 066 009 Wall mount luminairewhitewide beam 96° / 95°TC-L 24 Won / off
