  • Monospot Gobo

    ×


    8 905 054 019

    Monospot Gobo

    Housing colour

    black
    silver grey
    white

    Colour temperature

    6500 K
    3000 K
    zurück
    Specification
    Colour
    silver grey
    Fixation
    with mounting bracket

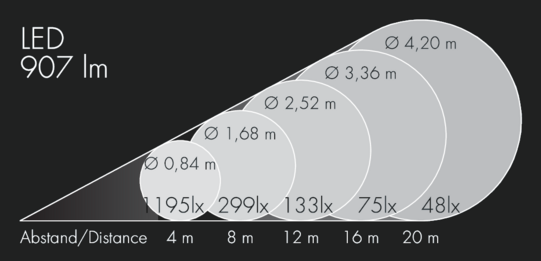

    Light distribution
    150 mm focal length
    Beam angle (FWHM)
    14°
    Light source
    LED 6500 K
    Luminous flux
    1795 lm
    Power
    55 W
    Efficiency
    33 lm/W
    Control
    on / off
    Color Rendering Index cri
    70 70
    Colour tolerance
    —
    Service life
    —
    Download
    • Data sheet PDF
    • Specification text TXT
    • Mounting instructions PDF
    • Luminaire data LDT
    • Luminaire data IES
    • 3d-Modell 3DS
    • Drawing AI
    • Product photo jpg
    Add accessories to your data sheet with a click.

    128 0 626 950 | silver grey

    Pole top fitter aluminum, polyester powder coated, for pole Ø 76 mm, with M20 thread, for one luminaire.

    119 0 035 950 | silver grey

    singe pole mount adapter for Nightspot B gobo projectors, aluminum, for pole diameter 76 - 89 mm

    119 0 036 950 | silver grey

    double pole mount adapter for Nightspot B gobo projectors, aluminum, for pole diameter 76 - 89 mm

    129 0 489

    standard gobo Waves, Ø 50 mm

    129 0 490

    standard gobo Stars, Ø 50 mm

    129 0 491

    standard gobo Hash, Ø 50 mm

    129 0 780

    Framer to create sharp edges on 3 or 4 sided images
    Download data sheet

    For the Monospot series there is a gobo projector available with precise optics for sharpe-edged image projections. The optical system can accommodate gobos and colour filters simultaneously. With the help of a framer, the edges of the image can be defined and adapted to the size of the projection surface.The Monospot series thus offers many possibilities for imaginative illumination.

    Preselection
    Light source
    Fixation
    Colour
    Light distribution
    Colour temperature
    Control
    Luminous flux

    144 Products
    •   Part number Description Colour Light distribution Light source Luminous flux Power
    • 8 905 054 0198 905 054 019Monospot Gobosilver grey150 mm focal length 14°LED 6500 K1795 lm55 Won / off
    • 8 905 054 0498 905 054 049Monospot Gobosilver grey85 mm focal length 22°LED 6500 K1680 lm55 Won / off
    • 8 905 054 0598 905 054 059Monospot Gobosilver grey63 mm focal length 29°LED 6500 K1240 lm55 Won / off
    • 8 905 054 0698 905 054 069Monospot Gobosilver grey45 mm focal length 41°LED 6500 K1724 lm55 Won / off
    • 8 905 054 1198 905 054 119Monospot Gobosilver grey150 mm focal length 14°LED 6500 K1795 lm55 WDALI
    • 8 905 054 1498 905 054 149Monospot Gobosilver grey85 mm focal length 22°LED 6500 K1680 lm55 WDALI
    • 8 905 054 1598 905 054 159Monospot Gobosilver grey63 mm focal length 29°LED 6500 K1240 lm55 WDALI
    • 8 905 054 1698 905 054 169Monospot Gobosilver grey45 mm focal length 41°LED 6500 K1724 lm55 WDALI
    • 8 905 054 2198 905 054 219Monospot Gobosilver grey150 mm focal length 14°LED 6500 K1795 lm55 W1-10V
    • 8 905 054 2498 905 054 249Monospot Gobosilver grey85 mm focal length 22°LED 6500 K1680 lm55 W1-10V
    • 8 905 054 2598 905 054 259Monospot Gobosilver grey63 mm focal length 29°LED 6500 K1240 lm55 W1-10V
    • 8 905 054 2698 905 054 269Monospot Gobosilver grey45 mm focal length 41°LED 6500 K1724 lm55 W1-10V
    • 8 905 056 0198 905 056 019Monospot Gobosilver grey150 mm focal length 14°LED 3000 K1544 lm55 Won / off
    • 8 905 056 0498 905 056 049Monospot Gobosilver grey85 mm focal length 22°LED 3000 K1445 lm55 Won / off
    • 8 905 056 0598 905 056 059Monospot Gobosilver grey63 mm focal length 29°LED 3000 K1066 lm55 Won / off
    • 8 905 056 0698 905 056 069Monospot Gobosilver grey45 mm focal length 41°LED 3000 K1483 lm55 Won / off
    • 8 905 056 1198 905 056 119Monospot Gobosilver grey150 mm focal length 14°LED 3000 K1544 lm55 WDALI
    • 8 905 056 1498 905 056 149Monospot Gobosilver grey85 mm focal length 22°LED 3000 K1445 lm55 WDALI
    • 8 905 056 1598 905 056 159Monospot Gobosilver grey63 mm focal length 29°LED 3000 K1066 lm55 WDALI
    • 8 905 056 1698 905 056 169Monospot Gobosilver grey45 mm focal length 41°LED 3000 K1483 lm55 WDALI
    • 8 905 056 2198 905 056 219Monospot Gobosilver grey150 mm focal length 14°LED 3000 K1544 lm55 W1-10V
    • 8 905 056 2498 905 056 249Monospot Gobosilver grey85 mm focal length 22°LED 3000 K1445 lm55 W1-10V
    • 8 905 056 2598 905 056 259Monospot Gobosilver grey63 mm focal length 29°LED 3000 K1066 lm55 W1-10V
    • 8 905 056 2698 905 056 269Monospot Gobosilver grey45 mm focal length 41°LED 3000 K1483 lm55 W1-10V
    • 8 905 044 0198 905 044 019Monospot Goboblack150 mm focal length 14°LED 6500 K1795 lm55 Won / off
    • 8 905 044 0498 905 044 049Monospot Goboblack85 mm focal length 22°LED 6500 K1680 lm55 Won / off
    • 8 905 044 0598 905 044 059Monospot Goboblack63 mm focal length 29°LED 6500 K1240 lm55 Won / off
    • 8 905 044 0698 905 044 069Monospot Goboblack45 mm focal length 41°LED 6500 K1724 lm55 Won / off
    • 8 905 044 1198 905 044 119Monospot Goboblack150 mm focal length 14°LED 6500 K1795 lm55 WDALI
    • 8 905 044 1498 905 044 149Monospot Goboblack85 mm focal length 22°LED 6500 K1680 lm55 WDALI
    • 8 905 044 1598 905 044 159Monospot Goboblack63 mm focal length 29°LED 6500 K1240 lm55 WDALI
    • 8 905 044 1698 905 044 169Monospot Goboblack45 mm focal length 41°LED 6500 K1724 lm55 WDALI
    • 8 905 044 2198 905 044 219Monospot Goboblack150 mm focal length 14°LED 6500 K1795 lm55 W1-10V
    • 8 905 044 2498 905 044 249Monospot Goboblack85 mm focal length 22°LED 6500 K1680 lm55 W1-10V
    • 8 905 044 2598 905 044 259Monospot Goboblack63 mm focal length 29°LED 6500 K1240 lm55 W1-10V
    • 8 905 044 2698 905 044 269Monospot Goboblack45 mm focal length 41°LED 6500 K1724 lm55 W1-10V
    • 8 905 046 0198 905 046 019Monospot Goboblack150 mm focal length 14°LED 3000 K1544 lm55 Won / off
    • 8 905 046 0498 905 046 049Monospot Goboblack85 mm focal length 22°LED 3000 K1445 lm55 Won / off
    • 8 905 046 0598 905 046 059Monospot Goboblack63 mm focal length 29°LED 3000 K1066 lm55 Won / off
    • 8 905 046 0698 905 046 069Monospot Goboblack45 mm focal length 41°LED 3000 K1483 lm55 Won / off
    • 8 905 046 1198 905 046 119Monospot Goboblack150 mm focal length 14°LED 3000 K1544 lm55 WDALI
    • 8 905 046 1498 905 046 149Monospot Goboblack85 mm focal length 22°LED 3000 K1445 lm55 WDALI
    • 8 905 046 1598 905 046 159Monospot Goboblack63 mm focal length 29°LED 3000 K1066 lm55 WDALI
    • 8 905 046 1698 905 046 169Monospot Goboblack45 mm focal length 41°LED 3000 K1483 lm55 WDALI
    • 8 905 046 2198 905 046 219Monospot Goboblack150 mm focal length 14°LED 3000 K1544 lm55 W1-10V
    • 8 905 046 2498 905 046 249Monospot Goboblack85 mm focal length 22°LED 3000 K1445 lm55 W1-10V
    • 8 905 046 2598 905 046 259Monospot Goboblack63 mm focal length 29°LED 3000 K1066 lm55 W1-10V
    • 8 905 046 2698 905 046 269Monospot Goboblack45 mm focal length 41°LED 3000 K1483 lm55 W1-10V
    • 8 905 064 0198 905 064 019Monospot Gobowhite150 mm focal length 14°LED 6500 K1795 lm55 Won / off
    • 8 905 064 0498 905 064 049Monospot Gobowhite85 mm focal length 22°LED 6500 K1680 lm55 Won / off
    • 8 905 064 0598 905 064 059Monospot Gobowhite63 mm focal length 29°LED 6500 K1240 lm55 Won / off
    • 8 905 064 0698 905 064 069Monospot Gobowhite45 mm focal length 41°LED 6500 K1724 lm55 Won / off
    • 8 905 064 1198 905 064 119Monospot Gobowhite150 mm focal length 14°LED 6500 K1795 lm55 WDALI
    • 8 905 064 1498 905 064 149Monospot Gobowhite85 mm focal length 22°LED 6500 K1680 lm55 WDALI
    • 8 905 064 1598 905 064 159Monospot Gobowhite63 mm focal length 29°LED 6500 K1240 lm55 WDALI
    • 8 905 064 1698 905 064 169Monospot Gobowhite45 mm focal length 41°LED 6500 K1724 lm55 WDALI
    • 8 905 064 2198 905 064 219Monospot Gobowhite150 mm focal length 14°LED 6500 K1795 lm55 W1-10V
    • 8 905 064 2498 905 064 249Monospot Gobowhite85 mm focal length 22°LED 6500 K1680 lm55 W1-10V
    • 8 905 064 2598 905 064 259Monospot Gobowhite63 mm focal length 29°LED 6500 K1240 lm55 W1-10V
    • 8 905 064 2698 905 064 269Monospot Gobowhite45 mm focal length 41°LED 6500 K1724 lm55 W1-10V
    • 8 905 066 0198 905 066 019Monospot Gobowhite150 mm focal length 14°LED 3000 K1544 lm55 Won / off
    • 8 905 066 0498 905 066 049Monospot Gobowhite85 mm focal length 22°LED 3000 K1445 lm55 Won / off
    • 8 905 066 0598 905 066 059Monospot Gobowhite63 mm focal length 29°LED 3000 K1066 lm55 Won / off
    • 8 905 066 0698 905 066 069Monospot Gobowhite45 mm focal length 41°LED 3000 K1483 lm55 Won / off
    • 8 905 066 1198 905 066 119Monospot Gobowhite150 mm focal length 14°LED 3000 K1544 lm55 WDALI
    • 8 905 066 1498 905 066 149Monospot Gobowhite85 mm focal length 22°LED 3000 K1445 lm55 WDALI
    • 8 905 066 1598 905 066 159Monospot Gobowhite63 mm focal length 29°LED 3000 K1066 lm55 WDALI
    • 8 905 066 1698 905 066 169Monospot Gobowhite45 mm focal length 41°LED 3000 K1483 lm55 WDALI
    • 8 905 066 2198 905 066 219Monospot Gobowhite150 mm focal length 14°LED 3000 K1544 lm55 W1-10V
    • 8 905 066 2498 905 066 249Monospot Gobowhite85 mm focal length 22°LED 3000 K1445 lm55 W1-10V
    • 8 905 066 2598 905 066 259Monospot Gobowhite63 mm focal length 29°LED 3000 K1066 lm55 W1-10V
    • 8 905 066 2698 905 066 269Monospot Gobowhite45 mm focal length 41°LED 3000 K1483 lm55 W1-10V
    • 8 905 254 0198 905 254 019Monospot Gobosilver grey150 mm focal length 14°LED 6500 K1795 lm55 Won / off
    • 8 905 254 0498 905 254 049Monospot Gobosilver grey85 mm focal length 22°LED 6500 K1680 lm55 Won / off
    • 8 905 254 0598 905 254 059Monospot Gobosilver grey63 mm focal length 29°LED 6500 K1240 lm55 Won / off
    • 8 905 254 0698 905 254 069Monospot Gobosilver grey45 mm focal length 41°LED 6500 K1724 lm55 Won / off
    • 8 905 254 1198 905 254 119Monospot Gobosilver grey150 mm focal length 14°LED 6500 K1795 lm55 WDALI
    • 8 905 254 1498 905 254 149Monospot Gobosilver grey85 mm focal length 22°LED 6500 K1680 lm55 WDALI
    • 8 905 254 1598 905 254 159Monospot Gobosilver grey63 mm focal length 29°LED 6500 K1240 lm55 WDALI
    • 8 905 254 1698 905 254 169Monospot Gobosilver grey45 mm focal length 41°LED 6500 K1724 lm55 WDALI
    • 8 905 254 2198 905 254 219Monospot Gobosilver grey150 mm focal length 14°LED 6500 K1795 lm55 W1-10V
    • 8 905 254 2498 905 254 249Monospot Gobosilver grey85 mm focal length 22°LED 6500 K1680 lm55 W1-10V
    • 8 905 254 2598 905 254 259Monospot Gobosilver grey63 mm focal length 29°LED 6500 K1240 lm55 W1-10V
    • 8 905 254 2698 905 254 269Monospot Gobosilver grey45 mm focal length 41°LED 6500 K1724 lm55 W1-10V
    • 8 905 256 0198 905 256 019Monospot Gobosilver grey150 mm focal length 14°LED 3000 K1544 lm55 Won / off
    • 8 905 256 0498 905 256 049Monospot Gobosilver grey85 mm focal length 22°LED 3000 K1445 lm55 Won / off
    • 8 905 256 0598 905 256 059Monospot Gobosilver grey63 mm focal length 29°LED 3000 K1066 lm55 Won / off
    • 8 905 256 0698 905 256 069Monospot Gobosilver grey45 mm focal length 41°LED 3000 K1483 lm55 Won / off
    • 8 905 256 1198 905 256 119Monospot Gobosilver grey150 mm focal length 14°LED 3000 K1544 lm55 WDALI
    • 8 905 256 1498 905 256 149Monospot Gobosilver grey85 mm focal length 22°LED 3000 K1445 lm55 WDALI
    • 8 905 256 1598 905 256 159Monospot Gobosilver grey63 mm focal length 29°LED 3000 K1066 lm55 WDALI
    • 8 905 256 1698 905 256 169Monospot Gobosilver grey45 mm focal length 41°LED 3000 K1483 lm55 WDALI
    • 8 905 256 2198 905 256 219Monospot Gobosilver grey150 mm focal length 14°LED 3000 K1544 lm55 W1-10V
    • 8 905 256 2498 905 256 249Monospot Gobosilver grey85 mm focal length 22°LED 3000 K1445 lm55 W1-10V
    • 8 905 256 2598 905 256 259Monospot Gobosilver grey63 mm focal length 29°LED 3000 K1066 lm55 W1-10V
    • 8 905 256 2698 905 256 269Monospot Gobosilver grey45 mm focal length 41°LED 3000 K1483 lm55 W1-10V
    • 8 905 244 0198 905 244 019Monospot Goboblack150 mm focal length 14°LED 6500 K1795 lm55 Won / off
    • 8 905 244 0498 905 244 049Monospot Goboblack85 mm focal length 22°LED 6500 K1680 lm55 Won / off
    • 8 905 244 0598 905 244 059Monospot Goboblack63 mm focal length 29°LED 6500 K1240 lm55 Won / off
    • 8 905 244 0698 905 244 069Monospot Goboblack45 mm focal length 41°LED 6500 K1724 lm55 Won / off
    • 8 905 244 1198 905 244 119Monospot Goboblack150 mm focal length 14°LED 6500 K1795 lm55 WDALI
    • 8 905 244 1498 905 244 149Monospot Goboblack85 mm focal length 22°LED 6500 K1680 lm55 WDALI
    • 8 905 244 1598 905 244 159Monospot Goboblack63 mm focal length 29°LED 6500 K1240 lm55 WDALI
    • 8 905 244 1698 905 244 169Monospot Goboblack45 mm focal length 41°LED 6500 K1724 lm55 WDALI
    • 8 905 244 2198 905 244 219Monospot Goboblack150 mm focal length 14°LED 6500 K1795 lm55 W1-10V
    • 8 905 244 2498 905 244 249Monospot Goboblack85 mm focal length 22°LED 6500 K1680 lm55 W1-10V
    • 8 905 244 2598 905 244 259Monospot Goboblack63 mm focal length 29°LED 6500 K1240 lm55 W1-10V
    • 8 905 244 2698 905 244 269Monospot Goboblack45 mm focal length 41°LED 6500 K1724 lm55 W1-10V
    • 8 905 246 0198 905 246 019Monospot Goboblack150 mm focal length 14°LED 3000 K1544 lm55 Won / off
    • 8 905 246 0498 905 246 049Monospot Goboblack85 mm focal length 22°LED 3000 K1445 lm55 Won / off
    • 8 905 246 0598 905 246 059Monospot Goboblack63 mm focal length 29°LED 3000 K1066 lm55 Won / off
    • 8 905 246 0698 905 246 069Monospot Goboblack45 mm focal length 41°LED 3000 K1483 lm55 Won / off
    • 8 905 246 1198 905 246 119Monospot Goboblack150 mm focal length 14°LED 3000 K1544 lm55 WDALI
    • 8 905 246 1498 905 246 149Monospot Goboblack85 mm focal length 22°LED 3000 K1445 lm55 WDALI
    • 8 905 246 1598 905 246 159Monospot Goboblack63 mm focal length 29°LED 3000 K1066 lm55 WDALI
    • 8 905 246 1698 905 246 169Monospot Goboblack45 mm focal length 41°LED 3000 K1483 lm55 WDALI
    • 8 905 246 2198 905 246 219Monospot Goboblack150 mm focal length 14°LED 3000 K1544 lm55 W1-10V
    • 8 905 246 2498 905 246 249Monospot Goboblack85 mm focal length 22°LED 3000 K1445 lm55 W1-10V
    • 8 905 246 2598 905 246 259Monospot Goboblack63 mm focal length 29°LED 3000 K1066 lm55 W1-10V
    • 8 905 246 2698 905 246 269Monospot Goboblack45 mm focal length 41°LED 3000 K1483 lm55 W1-10V
    • 8 905 264 0198 905 264 019Monospot Gobowhite150 mm focal length 14°LED 6500 K1795 lm55 Won / off
    • 8 905 264 0498 905 264 049Monospot Gobowhite85 mm focal length 22°LED 6500 K1680 lm55 Won / off
    • 8 905 264 0598 905 264 059Monospot Gobowhite63 mm focal length 29°LED 6500 K1240 lm55 Won / off
    • 8 905 264 0698 905 264 069Monospot Gobowhite45 mm focal length 41°LED 6500 K1724 lm55 Won / off
    • 8 905 264 1198 905 264 119Monospot Gobowhite150 mm focal length 14°LED 6500 K1795 lm55 WDALI
    • 8 905 264 1498 905 264 149Monospot Gobowhite85 mm focal length 22°LED 6500 K1680 lm55 WDALI
    • 8 905 264 1598 905 264 159Monospot Gobowhite63 mm focal length 29°LED 6500 K1240 lm55 WDALI
    • 8 905 264 1698 905 264 169Monospot Gobowhite45 mm focal length 41°LED 6500 K1724 lm55 WDALI
    • 8 905 264 2198 905 264 219Monospot Gobowhite150 mm focal length 14°LED 6500 K1795 lm55 W1-10V
    • 8 905 264 2498 905 264 249Monospot Gobowhite85 mm focal length 22°LED 6500 K1680 lm55 W1-10V
    • 8 905 264 2598 905 264 259Monospot Gobowhite63 mm focal length 29°LED 6500 K1240 lm55 W1-10V
    • 8 905 264 2698 905 264 269Monospot Gobowhite45 mm focal length 41°LED 6500 K1724 lm55 W1-10V
    • 8 905 266 0198 905 266 019Monospot Gobowhite150 mm focal length 14°LED 3000 K1544 lm55 Won / off
    • 8 905 266 0498 905 266 049Monospot Gobowhite85 mm focal length 22°LED 3000 K1445 lm55 Won / off
    • 8 905 266 0598 905 266 059Monospot Gobowhite63 mm focal length 29°LED 3000 K1066 lm55 Won / off
    • 8 905 266 0698 905 266 069Monospot Gobowhite45 mm focal length 41°LED 3000 K1483 lm55 Won / off
    • 8 905 266 1198 905 266 119Monospot Gobowhite150 mm focal length 14°LED 3000 K1544 lm55 WDALI
    • 8 905 266 1498 905 266 149Monospot Gobowhite85 mm focal length 22°LED 3000 K1445 lm55 WDALI
    • 8 905 266 1598 905 266 159Monospot Gobowhite63 mm focal length 29°LED 3000 K1066 lm55 WDALI
    • 8 905 266 1698 905 266 169Monospot Gobowhite45 mm focal length 41°LED 3000 K1483 lm55 WDALI
    • 8 905 266 2198 905 266 219Monospot Gobowhite150 mm focal length 14°LED 3000 K1544 lm55 W1-10V
    • 8 905 266 2498 905 266 249Monospot Gobowhite85 mm focal length 22°LED 3000 K1445 lm55 W1-10V
    • 8 905 266 2598 905 266 259Monospot Gobowhite63 mm focal length 29°LED 3000 K1066 lm55 W1-10V
    • 8 905 266 2698 905 266 269Monospot Gobowhite45 mm focal length 41°LED 3000 K1483 lm55 W1-10V
    • Imprint
    • Data protection declaration
    •
    •
    •
