meyer lighting | Products

Monoflood

8 202 246 019

Housing colour

Fixation

with mounting bracket

Colour temperature

Light distribution

Control

Specification

Colour: black
Fixation: Pole luminaire

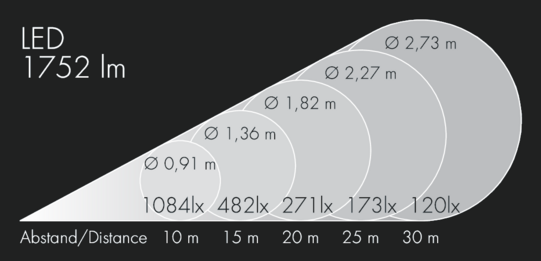

Light distribution: narrow beam
Beam angle (FWHM): 5°
Light source: LED 3000 K
Luminous flux: 1752 lm
Power: 27 W
Efficiency: 66 lm/W
Control: on / off
Color Rendering Index cri: CRI > 80 > 80
Colour tolerance: max 2 SDCM
Service life: L: 90, B:10

Download

122 0 412 | black

Honeycomb louvre internal (factory fitted), to avoid glare

122 0 408

Prismatic glass for diffused light distribution, internal (factory fitted)

122 0 402 940 | black

Cowl stainless steel, to avoid glare from 3 directions, for mounting in front of floodlight

Monoflood is a new floodlight series with precise beam control and minimalist design. The luminaires are available in four sizes and wattages. With a wide choice of different reflectors and lens optics they can be used for various different illumination tasks. The scope of applications includes uniform area lighting and accent lighting of façade details.
