  • Ecospot
    Design: Roy Fleetwood

  • Eskilstuna, Sweden

    Railway Bridge Eskilstuna, Sweden
    ÅF Lighting, Stockholm, Photo: Sten Jansin

    ×


    8 981 065 049

    Ecospot

    Housing colour

    silver grey
    black
    white

    Colour temperature

    4000 K
    3000 K

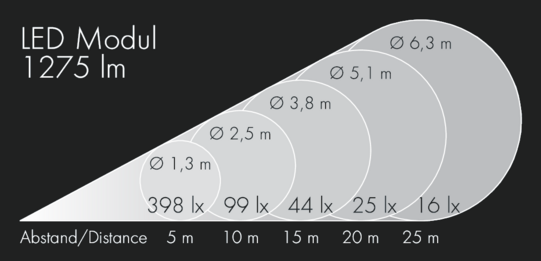

    Light distribution

    Specification
    Colour
    white
    Fixation
    with mounting bracket
    Light distribution
    medium wide beam
    Beam angle (FWHM)
    15°
    Light source
    LED 4000 K
    Luminous flux
    1275 lm
    Power
    19 W
    Efficiency
    61 lm/W
    Control
    on / off
    Color Rendering Index cri
    CRI > 80 > 80
    Colour tolerance
    max 2 SDCM
    Service life
    L: 80, B:20
    Download
    Add accessories to your data sheet with a click.

    129 0 499 960 | white

    Cowl stainless steel, to reduce lateral glare, for retro fitting, not in combination with other accessories

    129 0 500 960 | white

    Wall arm 250 mm aluminum, polyester powder coated, for the illumination of advertising surfaces, signs and facades, with internal cable passage

    129 0 502 960 | white

    Earth spike stainless steel, for use in landscaped areas

    128 0 760 960 | white

    pole mount adapter aluminum, polyester powder coated, stainless steel strap, for mounting on poles Ø 60 – 120 mm

    129 0 602 960 | white

    Carrier frame with honeycomb louvre with safety glass, to reduce lateral glare, only one accessory per luminaire, not in combination

    129 0 602 961 | white

    Carrier frame with safety glass, for colour filters, lenses and plastic film, for retro-fitting, only one accessory per luminaire, not in combination
    Download data sheet

    Ecospot is a LED floodlight series with extremely narrow beam light distribution and very little light spill. The floodlights are available in two sizes – Ecospot Mini for highlighting architectural details,  Ecospot for accent lighting over longer distances.

    Preselection
    Typ
    Light source
    Colour
    Light distribution
    Colour temperature
    Control
    Power
    Luminous flux
    Modification

    72 Products
    •   Part number Description Colour Light distribution Light source Luminous flux Power
    • 8 980 055 0198 980 055 019 Ecospot Minisilver greynarrow beam 4°LED 4000 K157 lm3 Won / off
    • 8 980 055 0298 980 055 029 Ecospot Minisilver greylinear vertical 24° / 6°LED 4000 K153 lm3 Won / off
    • 8 980 055 0398 980 055 039 Ecospot Minisilver greylinear horizontal 6° / 24°LED 4000 K153 lm3 Won / off
    • 8 980 055 0498 980 055 049 Ecospot Minisilver greymedium wide beam 13°LED 4000 K155 lm3 Won / off
    • 8 980 056 0198 980 056 019 Ecospot Minisilver greynarrow beam 4°LED 3000 K137 lm3 Won / off
    • 8 980 056 0298 980 056 029 Ecospot Minisilver greylinear vertical 24° / 6°LED 3000 K142 lm3 Won / off
    • 8 980 056 0398 980 056 039 Ecospot Minisilver greylinear horizontal 6° / 24°LED 3000 K144 lm3 Won / off
    • 8 980 056 0498 980 056 049 Ecospot Minisilver greymedium wide beam 13°LED 3000 K142 lm3 Won / off
    • 8 980 045 0198 980 045 019 Ecospot Miniblacknarrow beam 4°LED 4000 K157 lm3 Won / off
    • 8 980 045 0298 980 045 029 Ecospot Miniblacklinear vertical 24° / 6°LED 4000 K153 lm3 Won / off
    • 8 980 045 0398 980 045 039 Ecospot Miniblacklinear horizontal 6° / 24°LED 4000 K153 lm3 Won / off
    • 8 980 045 0498 980 045 049 Ecospot Miniblackmedium wide beam 13°LED 4000 K155 lm3 Won / off
    • 8 980 046 0198 980 046 019 Ecospot Miniblacknarrow beam 4°LED 3000 K137 lm3 Won / off
    • 8 980 046 0298 980 046 029 Ecospot Miniblacklinear vertical 24° / 6°LED 3000 K142 lm3 Won / off
    • 8 980 046 0398 980 046 039 Ecospot Miniblacklinear horizontal 6° / 24°LED 3000 K144 lm3 Won / off
    • 8 980 046 0498 980 046 049 Ecospot Miniblackmedium wide beam 13°LED 3000 K142 lm3 Won / off
    • 8 980 065 0198 980 065 019 Ecospot Miniwhitenarrow beam 4°LED 4000 K157 lm3 Won / off
    • 8 980 065 0298 980 065 029 Ecospot Miniwhitelinear vertical 24° / 6°LED 4000 K153 lm3 Won / off
    • 8 980 065 0398 980 065 039 Ecospot Miniwhitelinear horizontal 6° / 24°LED 4000 K153 lm3 Won / off
    • 8 980 065 0498 980 065 049 Ecospot Miniwhitemedium wide beam 13°LED 4000 K155 lm3 Won / off
    • 8 980 066 0198 980 066 019 Ecospot Miniwhitenarrow beam 4°LED 3000 K137 lm3 Won / off
    • 8 980 066 0298 980 066 029 Ecospot Miniwhitelinear vertical 24° / 6°LED 3000 K142 lm3 Won / off
    • 8 980 066 0398 980 066 039 Ecospot Miniwhitelinear horizontal 6° / 24°LED 3000 K144 lm3 Won / off
    • 8 980 066 0498 980 066 049 Ecospot Miniwhitemedium wide beam 13°LED 3000 K142 lm3 Won / off
    • 8 981 055 0198 981 055 019 Ecospotsilver greynarrow beam 6°LED 4000 K1275 lm19 Won / off
    • 8 981 055 0298 981 055 029 Ecospotsilver greylinear vertical 32° / 9°LED 4000 K1275 lm19 Won / off
    • 8 981 055 0398 981 055 039 Ecospotsilver greylinear horizontal 9° / 32°LED 4000 K1275 lm19 Won / off
    • 8 981 055 0498 981 055 049 Ecospotsilver greymedium wide beam 15°LED 4000 K1275 lm19 Won / off
    • 8 981 055 5198 981 055 519 Ecospot
      Version tmax. 50°C      silver greynarrow beam 6°LED 4000 K1029 lm15 Won / off
    • 8 981 055 5298 981 055 529 Ecospot
      Version tmax. 50°C      silver greylinear vertical 32° / 9°LED 4000 K1029 lm15 Won / off
    • 8 981 055 5398 981 055 539 Ecospot
      Version tmax. 50°C      silver greylinear horizontal 9° / 32°LED 4000 K1029 lm15 Won / off
    • 8 981 055 5498 981 055 549 Ecospot
      Version tmax. 50°C      silver greymedium wide beam 15°LED 4000 K1029 lm15 Won / off
    • 8 981 056 0198 981 056 019 Ecospotsilver greynarrow beam 6°LED 3000 K1211 lm19 Won / off
    • 8 981 056 0298 981 056 029 Ecospotsilver greylinear vertical 32° / 9°LED 3000 K1211 lm19 Won / off
    • 8 981 056 0398 981 056 039 Ecospotsilver greylinear horizontal 9° / 32°LED 3000 K1211 lm19 Won / off
    • 8 981 056 0498 981 056 049 Ecospotsilver greymedium wide beam 15°LED 3000 K1211 lm19 Won / off
    • 8 981 056 5198 981 056 519 Ecospot
      Version tmax. 50°C      silver greynarrow beam 6°LED 3000 K980 lm15 Won / off
    • 8 981 056 5298 981 056 529 Ecospot
      Version tmax. 50°C      silver greylinear vertical 32° / 9°LED 3000 K980 lm15 Won / off
    • 8 981 056 5398 981 056 539 Ecospot
      Version tmax. 50°C      silver greylinear horizontal 9° / 32°LED 3000 K980 lm15 Won / off
    • 8 981 056 5498 981 056 549 Ecospot
      Version tmax. 50°C      silver greymedium wide beam 15°LED 3000 K980 lm15 Won / off
    • 8 981 045 0198 981 045 019 Ecospotblacknarrow beam 6°LED 4000 K1275 lm19 Won / off
    • 8 981 045 0298 981 045 029 Ecospotblacklinear vertical 32° / 9°LED 4000 K1275 lm19 Won / off
    • 8 981 045 0398 981 045 039 Ecospotblacklinear horizontal 9° / 32°LED 4000 K1275 lm19 Won / off
    • 8 981 045 0498 981 045 049 Ecospotblackmedium wide beam 15°LED 4000 K1275 lm19 Won / off
    • 8 981 045 5198 981 045 519 Ecospot
      Version tmax. 50°C      blacknarrow beam 6°LED 4000 K1029 lm15 Won / off
    • 8 981 045 5298 981 045 529 Ecospot
      Version tmax. 50°C      blacklinear vertical 32° / 9°LED 4000 K1029 lm15 Won / off
    • 8 981 045 5398 981 045 539 Ecospot
      Version tmax. 50°C      blacklinear horizontal 9° / 32°LED 4000 K1029 lm15 Won / off
    • 8 981 045 5498 981 045 549 Ecospot
      Version tmax. 50°C      blackmedium wide beam 15°LED 4000 K1029 lm15 Won / off
    • 8 981 046 0198 981 046 019 Ecospotblacknarrow beam 6°LED 3000 K1211 lm19 Won / off
    • 8 981 046 0298 981 046 029 Ecospotblacklinear vertical 32° / 9°LED 3000 K1211 lm19 Won / off
    • 8 981 046 0398 981 046 039 Ecospotblacklinear horizontal 9° / 32°LED 3000 K1211 lm19 Won / off
    • 8 981 046 0498 981 046 049 Ecospotblackmedium wide beam 15°LED 3000 K1211 lm19 Won / off
    • 8 981 046 5198 981 046 519 Ecospot
      Version tmax. 50°C      blacknarrow beam 6°LED 3000 K980 lm15 Won / off
    • 8 981 046 5298 981 046 529 Ecospot
      Version tmax. 50°C      blacklinear vertical 32° / 9°LED 3000 K980 lm15 Won / off
    • 8 981 046 5398 981 046 539 Ecospot
      Version tmax. 50°C      blacklinear horizontal 9° / 32°LED 3000 K980 lm15 Won / off
    • 8 981 046 5498 981 046 549 Ecospot
      Version tmax. 50°C      blackmedium wide beam 15°LED 3000 K980 lm15 Won / off
    • 8 981 065 0198 981 065 019 Ecospotwhitenarrow beam 6°LED 4000 K1275 lm19 Won / off
    • 8 981 065 0298 981 065 029 Ecospotwhitelinear vertical 32° / 9°LED 4000 K1275 lm19 Won / off
    • 8 981 065 0398 981 065 039 Ecospotwhitelinear horizontal 9° / 32°LED 4000 K1275 lm19 Won / off
    • 8 981 065 0498 981 065 049 Ecospotwhitemedium wide beam 15°LED 4000 K1275 lm19 Won / off
    • 8 981 065 5198 981 065 519 Ecospot
      Version tmax. 50°C      whitenarrow beam 6°LED 4000 K1029 lm15 Won / off
    • 8 981 065 5298 981 065 529 Ecospot
      Version tmax. 50°C      whitelinear vertical 32° / 9°LED 4000 K1029 lm15 Won / off
    • 8 981 065 5398 981 065 539 Ecospot
      Version tmax. 50°C      whitelinear horizontal 9° / 32°LED 4000 K1029 lm15 Won / off
    • 8 981 065 5498 981 065 549 Ecospot
      Version tmax. 50°C      whitemedium wide beam 15°LED 4000 K1029 lm15 Won / off
    • 8 981 066 0198 981 066 019 Ecospotwhitenarrow beam 6°LED 3000 K1211 lm19 Won / off
    • 8 981 066 0298 981 066 029 Ecospotwhitelinear vertical 32° / 9°LED 3000 K1211 lm19 Won / off
    • 8 981 066 0398 981 066 039 Ecospotwhitelinear horizontal 9° / 32°LED 3000 K1211 lm19 Won / off
    • 8 981 066 0498 981 066 049 Ecospotwhitemedium wide beam 15°LED 3000 K1211 lm19 Won / off
    • 8 981 066 5198 981 066 519 Ecospot
      Version tmax. 50°C      whitenarrow beam 6°LED 3000 K980 lm15 Won / off
    • 8 981 066 5298 981 066 529 Ecospot
      Version tmax. 50°C      whitelinear vertical 32° / 9°LED 3000 K980 lm15 Won / off
    • 8 981 066 5398 981 066 539 Ecospot
      Version tmax. 50°C      whitelinear horizontal 9° / 32°LED 3000 K980 lm15 Won / off
    • 8 981 066 5498 981 066 549 Ecospot
      Version tmax. 50°C      whitemedium wide beam 15°LED 3000 K980 lm15 Won / off
